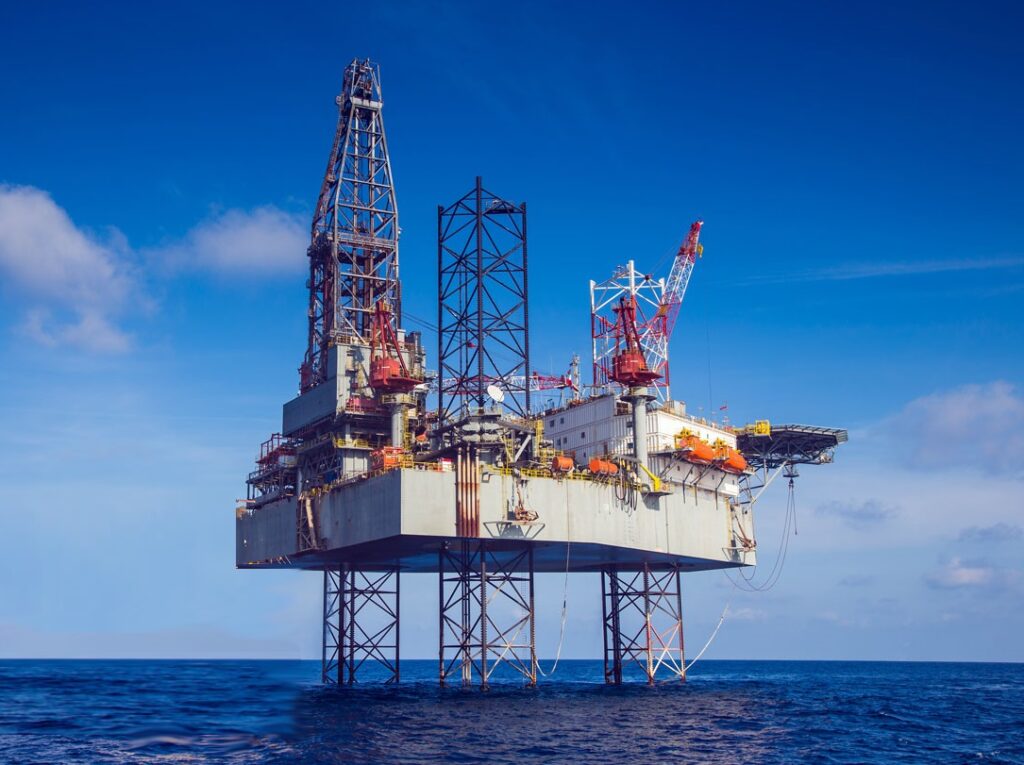

GustoMSC CJ46-X100-D is designed for operation of up to 114.3 m water depth
and up to a maximum drilling depth of 9144 m. Three (3) triangular open truss type
legs support the platform‘s triangular pontoon-shaped hull in the elevated position
， an X-Y type cantilever carrying the drilling derrick， accommodate living spaces
for one hundred and forty (140) men.

CJ46 Jackup Main Dimensions:
 Platform length: 65.25 m
 Width: 62.00 m
 Depth: 8.00 m
 Leg length: 153.8 m
 The maximum operating depth: is 114.3 m
 The maximum drilling depth: is 9,144 m
 Cantilever length: 45 m
 Cantilever width : 10.7 m
 Cantilever maximum reach:
 Longitudinal : 21.34 m
 Transverse : 2 x 6.1 m

CJ46 Jackup Drilling System Key Performance Data
 Drilling Depth: 30,000 ft
 BOP: 18-3/4”, 15,000 psi
 Diverter : 49-1/2”, 500 psi
 Choke & Kill:15,000 psi
 Derrick: 35 ft x 40 ft footage, free height 170 ft
 Drawworks: 750 st, 2,300 hp continuous
 Top Drive : 750 st in the elevator
 Rotary Table : 750 st, 49-1/2” opening
 Set Back : 30,000 ft in triple (Range II)
 HP Mud Pumps : 3 x 2200 hp, 7,500 psi
 Cement Standpipe : 15,000 psi
 Mud Standpipe : 7,500 psi
 Bulk Storage : 2,667 (424 m3) operating volume, No. of tanks = 8
 Class: ABS
